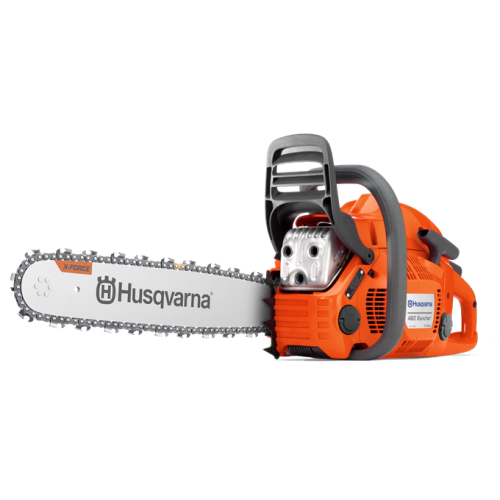

A robust all round chainsaw, ideal for demanding cutting jobs where more power is required for a longer guide bar. Equipped with X-Torq® engine with high torque over a wide rpm range. The saw’s body is ergonomically designed allowing for easy handling of the saw’s power. Further features include Smart Start®, Air Injection, LowVib® and combined choke/stop control.
Features:
Air Injection™ Technology: Centrifugal air cleaning system expels larger dust and debris particles before they reach the air filter to help improve engine life
Powerful and Efficient X-TORQ® Engine: Powerful X-TORQ® engine reduces emissions by up to 60% and increases fuel efficiency by up to 20%
LowVib® Technology: Dampeners between the engine and chassis significantly reduce vibrations so you can work more comfortably
Inertia-Activated Chain Brake: Reduces the likelihood of injury due to kickback.
Quick-Release Air Filter: Easily remove and replace the filter after cleaning
Felling Marks: Dedicated marks for increased felling precision
Combined Choke/Stop Control: Provides easier starting and reduces the risk of engine flooding
Side-Mounted Chain Tensioner: Easier access to chain tensioning device
Three-Piece Crankshaft: Forged three-piece crankshaft delivers maximum durability for even the toughest of jobs
Adjustable Oil Pump: Customize and control oil flow to meet any need
Ergonomic grip: Angled front handle for better grip and natural working position.
Smart Start® Technology: Specially-designed engine and starter for easy and fast starting with minimum effort
Quick Start with Air Purge: Air purge removes air from carburetor and fuel system for easy starting
Specifications:
| Dimensions |
|
| Weight (excl. cutting equipment) |
13.2 lbs |
| Weight (excl. cutting equipment) |
13.2 lbs / 6 kg |
| Handle type |
Standard |
| Product size height |
11.8" |
| Product size width |
8.8" |
| Engine |
|
| #Fuel tank volume |
0.9 US pint |
| Cylinder displacement |
3.68 cu.inch / 60.3 cm³ |
| Cylinder displacement |
3.68 cu.inch / 60.3 см³ |
| Power output |
3.62 hp |
| Power output |
3.62 hp / 2.7 kW |
| Power/fuel type |
Gasoline |
| Spark plug |
NGK BPMR7A |
| Spark plug |
NGK CMR7H |
| Equipment |
|
| Chain speed at max power |
65.62 fts |
| Chain speed at max power |
65.62 fts / 20 m/s |
| Recommended bar length, max |
24" |
| Recommended bar length, max |
24" / 60 cm |
| Recommended bar length, min |
13" |
| Recommended bar length, min |
13" / 33 cm |
| Lubricant |
|
| Oil tank volume |
0.7 US pint |
| Oil tank volume |
0.7 US pint / 0.32 l |
| Sound and Noise |
|
| Sound power level, guaranteed (LWA) |
114 dB(A) |
| Sound power level, measured |
112 dB(A) |
| Sound pressure level at operators ear |
104 dB(A) |
| Style and sizes |
|
| Pitch |
.325" |
| Pitch |
1/4" |
